LINKOH Unmanaged Switch PoE 8 Ports Gigabit with 2GE SFP

LINKOH, Unmanaged PoE Switch with 8-10/100/1000TX 802.3at PoE+ 2*gigabit SFP uplink slot ports. Build -in 150W

Unmanaged PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber slot ports,port 1-8 can support IEEE 802.3af/at PoE standard, with VLAN isolation, 250M transmission and PD Alive checking function. Port 1 can support Hi-PoE 60W. Support 1U/19 inch rack installation.

  • Ideal PoE Solution for PoE IP Surveillance
  • Port 1 supports Hi-PoE 60W output
  • PoE and Data Transmission up to 250M
  • VLAN for Broadcast Storm Control
  • Unmanaged PD-Alive Check for Frozen PDs
  • Easy Cable Connection



Contact Us
SKU: LK3310-8P2C Category:

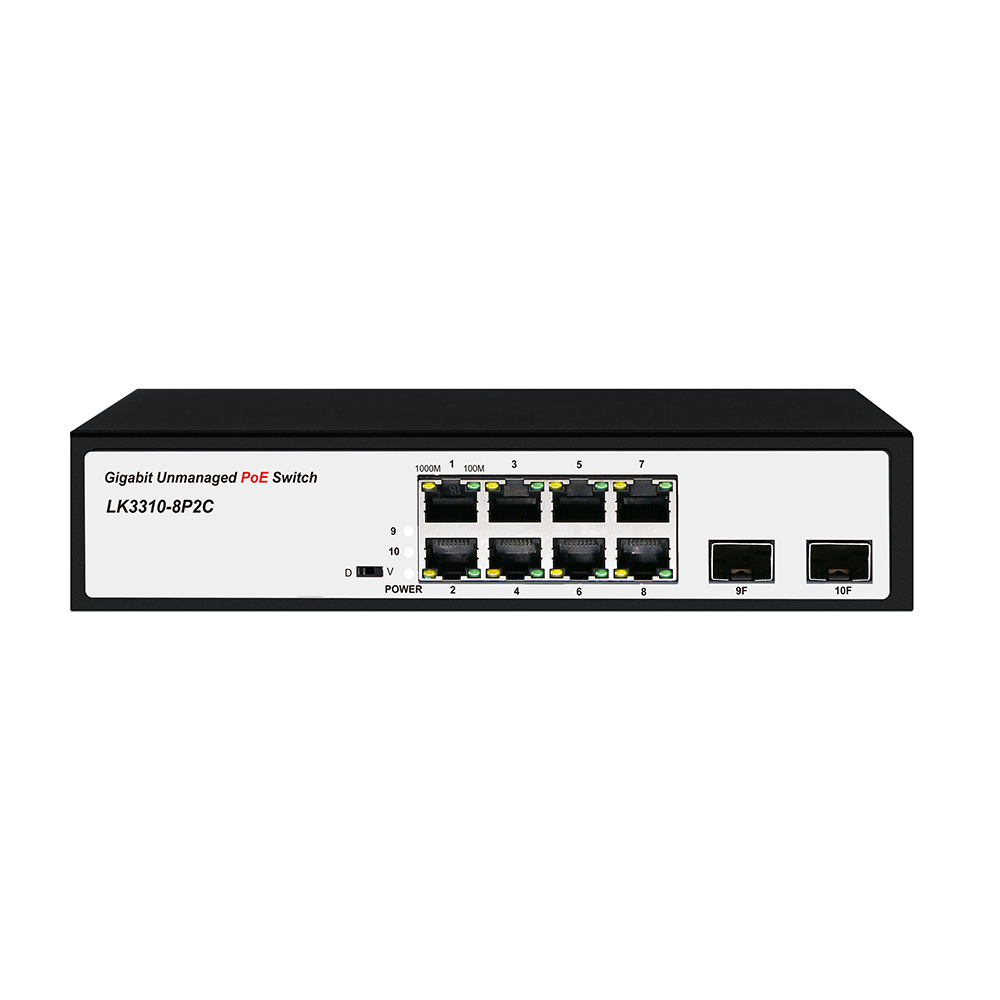

LK3310-8P2C is an unmanaged PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber slot ports,port 1-8 can support IEEE 802.3af/at PoE standard, with VLAN isolation, 250M transmission and PD Alive checking function. Port 1 can support Hi-PoE 60W. Support 1U/19 inch rack installation.

Ideal PoE Solution for PoE IP Surveillance

LK3310-8P2C brings you an ideally secure surveillance system at a lower total cost. The product provides 802.3at PoE+ ports able to feed sufficient PoE power to IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with  NVRs, uplinked to backbone switch and the monitoring center. With such a high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sites.



PoE and Data Transmission up to 250M

The switch has a DIP switch providing “Standard” and “Extend” operation modes. The switch operates as a normal IEEE 802.3at PoE+ Switch in the “Standard” operation mode. In the “Extend” operation mode, operates on a per-port basis at 10Mbps full duplex operation and can support 10~15-watt PoE power output over a distance of up to 250 meters, overcoming the 100-meter limit on Ethernet UTP cable.





VLAN for Broadcast Storm Control

The switch features “VLAN”function with the downlink ports isolated from each other via one DIP switch.  This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other, thus fully meeting the requirements of the IP surveillance systems and Ethernet projects.

Unmanaged PD-Alive Check for Frozen PDs

The switch can be configured to monitor connected PD status in real time. Once the PD stops working and responding, the switch will resume the PoE port power and bring the PD back to work. They will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Easy Cable Connection
With data switching and Power over Ethernet integrated into one unit, the LK3000 series reduces cabling requirements and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.

Specifications

Model LK3310-8P2C
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Fiber Ports 2-1000BASE-X SFP interfaces
PoE Ports 8-802.3af/802.3at PoE Injector Ports
Working Mode Support Normal and VLAN working modes controlled by DIP switch:

Normal mode: The switch works as a normal switch

VLAN mode: 1-8 ports are isolated from each other and separately work with the 9/10 ports

CCTV mode: PoE output up to 250M while bandwidth 10Mbps

Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Throughput 14.88Mpps @64 bytes
Address Table 2K entries
Share Data Buffer 2.5Mb
Jumbo Frame 9600 Bytes
Flow Control IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
PoE Standard IEEE 802.3.af/at/ Hi-PoE, Port 1 support 60W output, port 2-8 support up to 30W output
Power Supply Internal power supply 100~240V 50-60Hz 1A 150W
Power Consumption Less than 8W when PoE doesn’t work
LED Indicators Power: Green

Solid on- power work normal, off- power disconnected, blink- port short circuit or current over-load

10/100/1000T RJ45 Interfaces (Port 1 to Port 8):



LINK/ACT (Green)

Solid on- port connected, blink- PoE works with data transmission



POE (Yellow),

Solid on- port connected, the speed is 1000M, blink- PoE works with data transmission,while speed is 1000M



1000Mbps SFP Interfaces (Port 9to Port 10): Green

Solid on- port connected; blink- port connected without data transmission



Certification CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;
Dimension 210x140x45mm
Weight 1.1kg
Working Temperature -10 ℃to 45℃
Storage Temperature  -20℃ to 70 ℃
MTBF 50,000hrs
