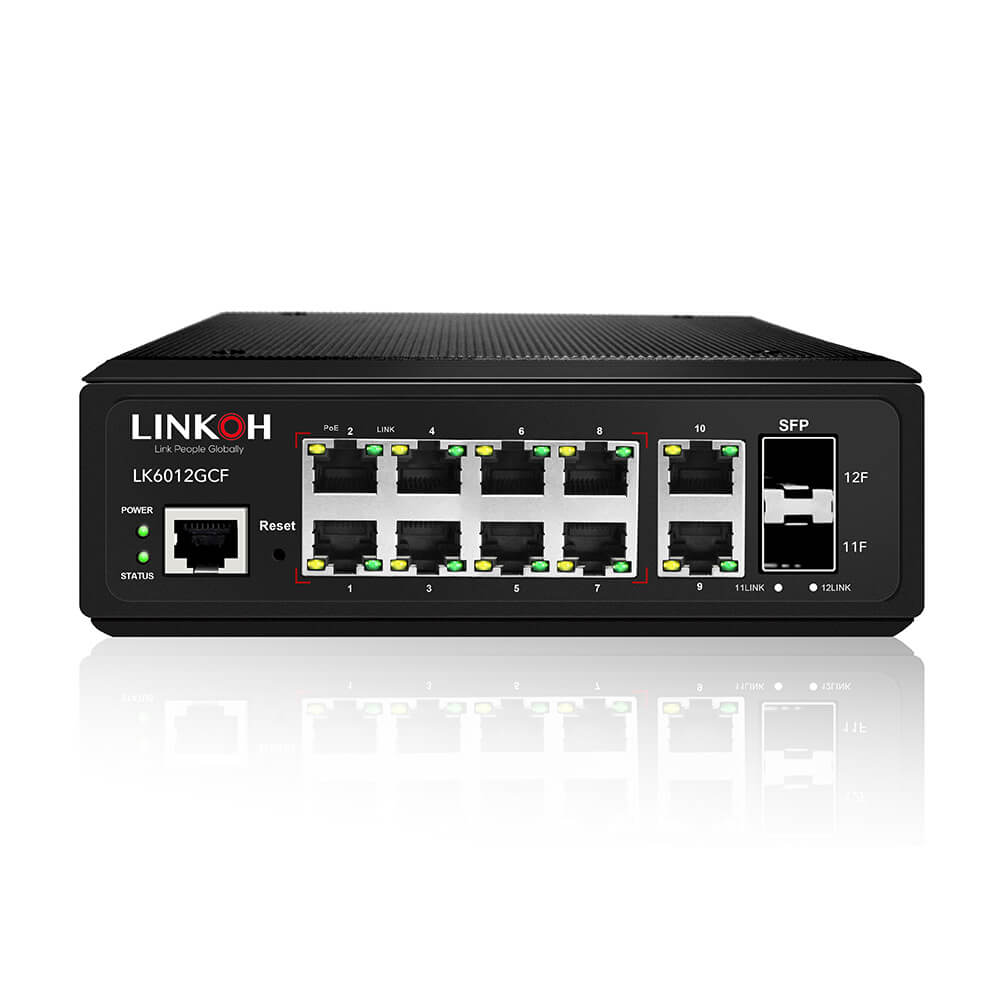

Industrial 8-Port PoE Switch Managed + 2-Port Gigabit RJ45 + 2-Port Gigabit SFP Optical

Industrial 8-Port PoE Switch Managed + 2-Port Gigabit RJ45 + 2-Port Gigabit SFP Optical

It’s a gigabit managed PoE switch that in industrial grade and designed to be used in terrible environment. For example, it allows the working temperature between -40??C to +70??C, protection includes 6KV surge protection, 6KV contact/8KV air ESD protection. LK6012GCF is with 8 ports 10/100/1000M IEEE 802.3af/at PoE, shared 2 10/100/1000M RJ45 ports and 2 100/1000M SFP ports, which will be suitable for your flexible usage.

Features

  • Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1s)
  • Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
  • Dual firmware backup
  • Support PoE management, like PoE schedule, PoE PD-alive,Port PoE Priority,Soft-reboot PoE Non-stop
  • Support G.8032 quick ring protocol. Self-recovery time <20ms
  • Support IEEE1588 v2, transparent clock(TC)
  • Support cable diagnosis, DDM, SFP digital diagnostics monitoring
Contact Us
SKU: LK6012GCF Category:

It’s a gigabit managed PoE switch that in industrial grade and designed to be used in terrible environment. For example, it allows the working temperature between -40C to +70C, protection includes 6KV surge protection, 6KV contact/8KV air ESD protection. LK6012GCF is with 8 ports 10/100/1000M IEEE 802.3af/at PoE, shared 2 10/100/1000M RJ45 ports and 2 100/1000M SFP ports, which will be suitable for your flexible usage.

Intelligent PDAlive Check for Frozen PDs

The LK6012GCF industrial PoE switch 12 ports can be configured to monitor connected PD’s status in real time. Once the PD stops working and responding, the LK6012GCF will reboot the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

PoE Schedule Function for Energy Saving

For environmental protection purpose, the LK6012GCF switch Ethernet PoE can effectively control the power supply besides its capability of giving high watts power. The PoE schedule function helps to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Scheduled PD Re-starting

The LK6012GCF smart switch PoE allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

Fast Recovery Redundant Ring for Critical Network Applications

The LK6012GCF supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.



1588 Time Protocol for Industrial Computing Networks

The LK6012GCF is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Strong Layer 2 Features

The LK6012GCF layer 2 Ethernet switch can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the LK6012GCF allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.



Efficient and Various Management Methods

For efficient management, the LK6012GCF is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.

For text-based management, it can be accessed via Telnet and the console port.

For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.



Intelligent PoE Switch SFP DDM Function

The LK6012GCF supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Specifications

Model LK6012GCF
Copper Ports 10-10/100/1000BASE-T RJ45 auto-sensing ports
Fiber Ports 2-100/1000BASE-T SFP interfaces, supports 100/1000Mbps dual mode
PoE Ports 8-802.3af/802.3at PoE Injector Ports
Console Ports 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 24Gbps/non-blocking
Throughput 17.856Mpps @64 bytes
Address Table 8K entries
Share Data Buffer 4.1 Mb
Jumbo Frame 9216 Bytes
SDRAM 1Gb
Flash Memory 128Mb
Flow Control IEEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Reset Button >2 sec.: Factory default and reset
Power Supply 48 ~ 57 VDC, 50/60Hz,Dual DC
PoE Standards IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)

Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)

LED Indicators Power: Green

Solid on–power work normal,off–power disconnected

System:Green

Blink–work normally, solid on–soft work abnormal, fast blink–soft upgrade

PoE: Yellow

Solid on–PoE work normally, Off–PoE doesn’t work, Blink–PoE overload

10/100/1000T RJ45 Interfaces (Port 1 to Port 10): 1000 LNK/ACT (Green),

Blink–port connected with data transmission; Solid on–port connected

without data transmission

100/1000Mbps SFP Interfaces (Port 11 to Port 12): Green

Blink- port connected with data transmission; Solid on- port connected

without data transmission

EMC Surge Immunity:6KV Per: IEC61000-4-5

ESD Protection: ESD Level 4 Per: IEC61000-4-2;EFT Level 4 Per: IEC61000-4-4

Dimension 165*145*53.5mm
Weight 0.9kg
Working Temperature -40°C to 75°C
Storage Temperature ‘-40℃ to 80 ℃
MTBF 50,000hrs

Layer 2 functions

Port configuration Auto-negotiation

Flow Control

Port Mirror:   TX/RX/BOTH;   Many-to-1 monitor

CPU Mirror

Traffic statistics

Link Aggregation Static link aggregation

LACP(Dynamic Trunk/Static Trunk)

Algorithm based on Source/Destination MAC

Algorithm based on Source/Destination IP

MAC Table Aging Time

Static MAC address

Dynamic MAC address management

VLAN 4094 Active VLANs

4094 VID

802.1Q Tag VLAN

Port VLAN

Protocol VLAN

MAC VLAN

Voice VLAN

802.1ad Q-in-Q tunneling

Private VLAN (Protected port)

GARP/GVRP

ACL 256ACLs

L2, L3 e L4

Time-based ACL

IP ACL

MAC ACL

MAC-IP ACL

User-Defined ACL

ICMPv6

Spanning tree 802.1D Spanning Tree Protocol (STP)

802.1w Rapid Spanning Tree Protocol (RSTP)

802.1s Multiple Spanning Tree Protocol (MSTP)

Loop Guard

Root Guard

TC-BPDU Guard

BPDU Guard

BPDU Filter

Ring Protection <20ms G.8032 ERPS Ring

Fast Ring

LINKOH Ring, < 20ms

Multicast 256 groups

IGMP v1/v2/v3 Snooping, Fast Leave

MLD Snooping

Multicast VLAN

IGMP filter

MVR

Multicast Routing

QOS 8 mapping IDs to 8 level priority queues

CoS port-based

CoS 802.1p-based

CoS DSCP-based

Scheduling algorithms SP, WRR, SP+WRR

Storm Control (Broadcast, Multicast, Unknown Unicast)

Bandwidth control per port

SWRR, DWRR for Scheduling

Flow Redirect

Precedence

TOS

Rate Limiting(Ingress/Egress)

Stri Priority

Security Features Port Security

MAC address filter

ARP Association (Manual, ARP scanning, DHCP snooping)

ARP Protection

AAA

DAI

DoS (Denial of Service)

Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,

Protocol Type;

802.1x Authentication (port-based e MAC-based)

TACACS/TACACS+ Authentication

RADIUS Authentication

DHCP Filter

Guest VLAN

SSLv2/SSLv3/TLSv1

SSHv1/SSHv2

Restriction of WEB access based on: IP Address, And. MAC and Port;

Port Isolation

Loopback detection

Management SNMP v1/v2c/v3 with Full Private MIBs

RMON 4 groups

WEB (HTTP/HTTPS)

CLI (Telnet, Console, SSHv1/v2)

Firmware upgrade via console/web/TFTP

Configuration Backup/Reload

Dual Firmware

LLDP

Configuration Export/Import

CDP Aware

OAM (IEEE802.3ah)

CFM (IEEE802.1ag)

sFlow

Telnet Client

Synchronization,

IEEE1588

Support IEEE1588v2 transparent clock
Other Features DNS Client

DHCP Relay

DHCP Client

DHCP Snooping

DHCP Option 66

DHCP Option 67

DHCP Option 82

NTP/SNTP Client

UPNP

UDLD

PoE management Total PoE power budget control

Per port PoE function enable/disable

PoE admin-mode control

PoE port power feeding priority

Per PoE port power limitation

PD classification detection

PD alive check

PoE schedule

Soft-reboot PoE Non-stop

Maintenance Cable Diagnostics

Ping

SFP DDM (Digital Diagnostics Monitoring)

Thermal protection

System log (Local and Remote)

Memory and CPU Monitoring

Tracert/ Tracert 6



 Layer 3 functions



Static Routing IPv4 Unicast: Static Routing (Software Base)

IPv6 Unicast: Static Routing (Software Base)

IPV6 IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

Ping6

Telnet(v6)

Http/Https

Interface IPV6

ACL IPV6
