LINKOH 24 Ports L2+ Managed Ethernet Switch

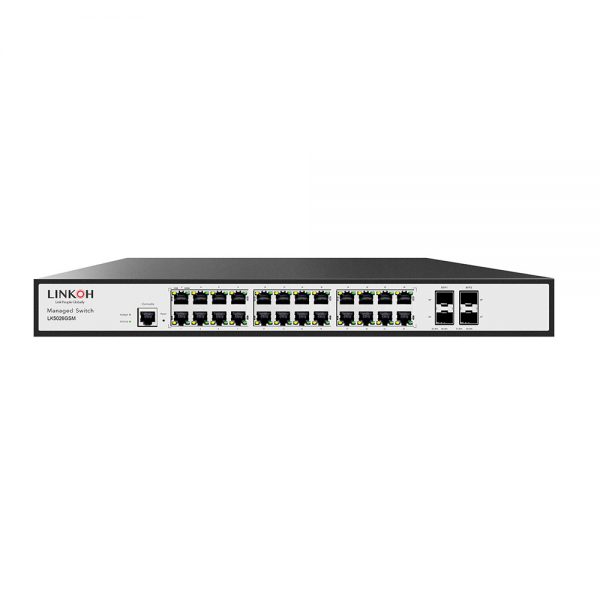

LINKOH 24ports managed Ethernet switch

LK5026GSM delivers 24 (10M/100M/1G) RJ45 ports and 2 Combo GbE RJ45/SFP ports. It provides high HW performance and environment flexibility for SMBs and Enterprises.

  • Solution for IPv6 Networking
  • Robust Layer 2 Features
  • Powerful Security Functions
  • Enhanced Security and Traffic Control
  • User-friendly Secure Management
  • Intelligent SFP DDM Function



Contact Us
SKU: LK5026GSM Category:

LK5026GSM is a high performance managed Ethernet switch with 24*10/100/1000M BASE-T and 4*100/1000M BASE-X ( two shared combo). It supports powerful L2+ management function, such as QoS, DHCP snooping, STP/RSTP/MSTP, port aggregation etc, which makes it suitable for most SMB projects.

Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions, LK5026GSM is the best choice for IP CCTV surveillance, VoIP and wireless solution providers to develop the IPv6 network. Meanwhile they help the SMBs to upgrade their network infrastructures to the IPv6 era without any extra investment.

Robust Layer 2 Features
LK5026GSM can be programmed for advanced switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS IGMP/MLD snooping etc. LK5026GSM allows the operation of a high-speed trunk combining multiple ports.

Powerful Security Functions
LK5026GSM provides a comprehensive access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control
LK5026GSM supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management
For efficient management, LK5026GSM is an Ethernet managed switch, equipped with console, web and SNMP management interfaces. With management interface, LK5026GSM offers an easy-to-use, platform independent management and configuration facility. LK5026GSM supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Meanwhile LK5026GSM offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, LK5026GSM offers  the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Intelligent SFP DDM Function
LK5026GSM support SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Specifications

Model LK5026GSM
Copper Ports 22 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Combo Ports 2-1000M BASE-T/BASE-X Combo ports
Fiber Ports 2-100/1000BASE-X SFP interfaces, supports 100/1000Mbps dual mode
Console Ports 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 52Gbps/non-blocking
Throughput 38.69Mpps @64 bytes
Address Table 8K entries
Share Data Buffer 4.0 Mb
Jumbo Frame 9600 Bytes
SDRAM 1Gb
Flash Memory 128Mb
Flow Control IEEE 802.3x pause frame for full-duplex,Back pressure for half-duplex
Reset Button > 2 sec: Factory default and reset
Power Supply 100~240V AC, 50/60Hz, 4A (max.)
Power Consumption 12V, 45watts/1122 BTU
LED Indicators Power: Green

Solid on- power work normal, off- power disconnected

System: Green

Blink-work normally, solid on- soft work abnormal, fast Blink- soft upgrade

10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (yellow)

Blink- port connected with data transmission; Solid on- port connected without data transmission

100/1000Mbps SFP Interfaces (Port 25 to Port 28): Green

Blink- port connected with data transmission; Solid on- port connected without data transmission

EMC Surge Immunity: IEC61000-4-5

ESD Protection:  ESD IEC61000-4-2:   EFT  IEC61000-4-4

Dimension 440x240x44.5mm
Weight 3.2kg
Working Temperature -10 ℃to 45℃
Storage Temperature  -20℃ to 70 ℃
MTBF 50,000hrs

Layer 2 functions

Port configuration Auto-negotiation

Flow Control

Port Mirror:   TX/RX/BOTH;   Many-to-1 monitor

CPU Mirror

Traffic statistics

Link Aggregation Static link aggregation

LACP(Dynamic Trunk/Static Trunk)

Algorith based on Source/Destination MAC

Algorithm based on Source/Destination IP

MAC Table Aging Time

Static MAC address

Dynamic MAC address management

VLAN 4094 Active VLANs

4094 VID

802.1Q Tag VLAN

Port VLAN

Protocol VLAN

MAC VLAN

Voice VLAN

802.1ad Q-in-Q tunneling

Private VLAN (Protected port)

GARP/GVRP

ACL 256ACLs

L2, L3 e L4

Time-based ACL

IP ACL

MAC ACL

MAC-IP ACL

User-Defined ACL

ICMPv6

Spanning tree 802.1D Spanning Tree Protocol (STP)

802.1w Rapid Spanning Tree Protocol (RSTP)

802.1s Multiple Spanning Tree Protocol (MSTP)

Loop Guard

Root Guard

TC-BPDU Guard

BPDU Guard

BPDU Filter

Ring Protection <20ms G.8032 ERPS Ring

Fast Ring

Multicast 256 groups

IGMP v1/v2/v3 Snooping, Fast Leave

MLD Snooping

Multicast VLAN

IGMP filter

MVR

Multicast Routing

QOS 8 mapping IDs to 8 level priority queues

CoS port-based

CoS 802.1p-based

CoS DSCP-based

Scheduling algorithms SP, WRR, SP+WRR

Storm Control (Broadcast, Multicast, Unknown Unicast)

Bandwidth control per port

SWRR, DWRR for Scheduling

Flow Redirect

Precedence

TOS

Rate Limiting(Ingress/Egress)

Stri Priority

Security Features Port Security

MAC address filter

ARP Association (Manual, ARP scanning, DHCP snooping)

ARP Protection

AAA

DAI

DoS (Denial of Service)

Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,

Protocol Type;

802.1x Authentication (port-based e MAC-based)

TACACS/TACACS+ Authentication

RADIUS Authentication

DHCP Filter

Guest VLAN

SSLv2/SSLv3/TLSv1

SSHv1/SSHv2

Restriction of WEB access based on: IP Address, And. MAC and Port;

Port Isolation

Loopback detection

Management SNMP v1/v2c/v3 with Full Private MIBs

RMON 4 groups

WEB (HTTP/HTTPS)

CLI (Telnet, Console, SSHv1/v2)

Firmware upgrade via console/web/TFTP

Configuration Backup/Reload

Dual Firmware

LLDP

Configuration Export/Import

CDP Aware

OAM (IEEE802.3ah)

CFM (IEEE802.1ag)

SFlow

Telnet client

Synchronization,

IEEE1588

Support IEEE1588v2 transparent clock
Other Features DNS Client

DHCP Relay

DHCP Client

DHCP Snooping

DHCP Option 66

DHCP Option 67

DHCP Option 82

NTP/SNTP Client

UPNP

UDLD



Maintenance Cable Diagnostics

Ping

SFP DDM (Digital Diagnostics Monitoring)

Thermal protection

System log (Local and Remote)

Memory and CPU Monitoring

Tracert /Tracert 6

  Layer 3 functions

Static Routing IPv4 Unicast: Static Routing(Software Base)

IPv6 Unicast: Static Routing(Software Base)

IPV6 IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

Ping6

Telnet(v6)

Http/Https

Interface IPV6

ACL IPV6
