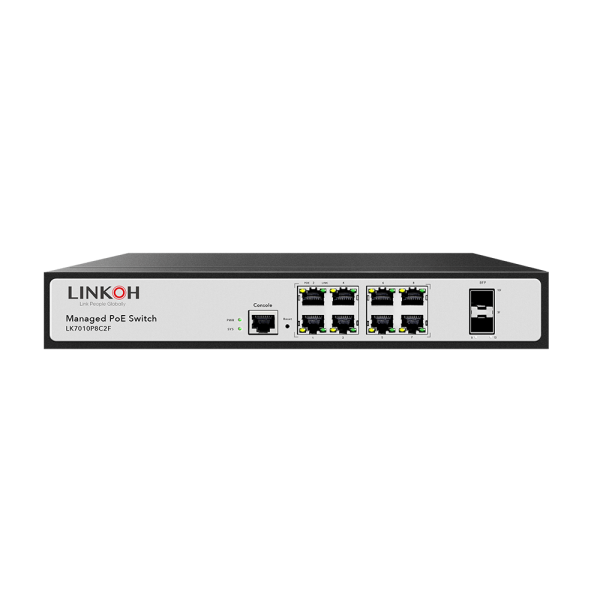

LINKOH L2+ Managed Switch with 8 Ports 2.5G Copper and 2 10G SFP+ Ports

LINKOH, 8-Port*2.5Gigabit+2*10G SFP++1Console L2+Managed Ethernet Switch

L2+ managed 2.5G Ethernet fiber switch with 8* 10/100/1000/2500M RJ45 ports and 2*10G SFP fiber slot ports, built-in 25W power supply,support 1U/19 inch rack installation. It is an ideal 2.5G copper solution for SMB and enterprise.

  • 10Gbps Uplink Capacity for Big Bandwidth Application
  • Solution for IPv6 Networking
  • Robust Layer 2 Features
  • Powerful Security Functions
  • Enhanced Security and Traffic Control
  • User-friendly Secure Management
  • Intelligent SFP DDM Function



Contact Us
SKU: LK5010XP8GC2F Category:

LK5010XP8GC2F is a L2+ managed 2.5G copper Ethernet fiber switch with 8* 10/100/1000/2500M RJ45 ports and 2*10G SFP fiber slot ports, built-in 25W power supply,support 1U/19 inch rack installation. With the development of Ethernet bandwidth, more and more devices, such as network card, servers, WIFI 6 APs, requires big bandwidth switches. LK5010XP8GC2F, as LINKOH’s first managed multigiga switch, is borned for this applications.

10Gbps Uplink Capacity for Big Bandwidth Application
10G Ethernet is a big leap in the evolution of Ethernet. The 10G SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. It is a cost-effective solution for SMB network to achieve the maximum performance of the 10G networks



Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions, LK5010XP8GC2F is the best choice for IP CCTV surveillance, VoIP and wireless solution providers to develop the IPv6 network. Meanwhile they help the SMBs to upgrade their network infrastructures to the IPv6 era without any extra investment.

Robust Layer 2 Features
LK5010XP8GC2F can be programmed for advanced switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS IGMP/MLD snooping etc. The LK5000 series allows the operation of a high-speed trunk combining multiple ports.

Powerful Security Functions
LK5010XP8GC2F provides a comprehensive access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control
LK5010XP8GC2F supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management
For efficient managementLK5010XP8GC2F is an managed  multigiga switch, equipped with console, web and SNMP management interfaces. With management interface, LK5010XP8GC2F offers an easy-to-use, platform independent management and configuration facility. LK5010XP8GC2F supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Meanwhile LK5010XP8GC2F offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover,LK5010XP8GC2F offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Intelligent SFP DDM Function
LK5010XP8GC2F supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Specifications

Model LK5010XP8GC2F
Copper Ports 8-2.5G BASE-T RJ45 auto-MDI/MDI-X ports
Fiber Ports 2x10G BASE-X SFP interfaces
PoE Ports 1~8-802.3af/802.3at PoE Injector Ports
Console Ports 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 80 Gbps/non-blocking
Throughput 59.52Mpps @64 bytes
Address Table 32K entries
Share Data Buffer 32 Mb
Jumbo Frame 9600 Bytes
SDRAM 2Gb
Flash Memory 128Mb
Flow Control IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
Reset Button >2 sec.: Factory default and reset
Power Supply 100~240V AC, 50/60Hz, 1A (max.)
Power Consumption Max.60 watts/1122 BTU
LED Indicators POWER, SYSTEM, Data
EMC Surge Immunity: 4KV Per: IEC61000-4-5

ESD Protection:ESD Level 4 Per: IEC61000-4-2

EFT Level 4 Per: IEC61000-4-4

Dimension 280x213x44.5mm
Weight 2 kg
Working Temperature -10 ℃to 45℃
Storage Temperature  -20℃ to 70 ℃
MTBF 50,000hrs

Layer 2 functions

Port configuration Auto-negotiation

Flow Control

Port Mirror:   TX/RX/BOTH;    Many-to-1 monitor

Traffic statistics

Link Aggregation Static link aggregation

LACP

Algorithm based on Source/Destination MAC

Algorithm based on Source/Destination IP

MAC Table Aging Time

Static MAC address

Dynamic MAC address management

VLAN 4094 Active VLANs

8K VID

802.1Q Tag VLAN

Port VLAN

Protocol VLAN

MAC VLAN

Voice VLAN

802.1ad Q-in-Q tunneling

Private VLAN (Protected port)

GARP/GVRP

ACL 256 ACLs

L2, L3 e L4

Time-based ACL

Spanning tree 802.1D Spanning Tree Protocol (STP)

802.1w Rapid Spanning Tree Protocol (RSTP)

802.1s Multiple Spanning Tree Protocol (MSTP)

Loop Guard

Root Guard

TC-BPDU Guard

BPDU Guard

BPDU Filter

Ring Protection <20ms G.8032 ERPS Ring
Multicast 256 groups

IGMP v1/v2/v3 Snooping, Fast Leave

MLD Snooping

Multicast VLAN

QOS 8 mapping IDs to 8 level priority queues

CoS port-based

CoS 802.1p-based

CoS DSCP-based

Scheduling algorithms SP, WRR, SP+WRR

Storm Control (Broadcast, Multicast, Unknown Unicast)

Bandwidth control per port

Security Features Port Security

MAC address filter

ARP Association (Manual, ARP scanning, DHCP snooping)

ARP Protection

DoS (Denial of Service)

Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,          Protocol Type;

802.1x Authentication (port-based e MAC-based)

TACACS/TACACS+ Authentication

RADIUS Authentication

DHCP Filter

Guest VLAN

SSLv2/SSLv3/TLSv1

SSHv1/SSHv2

Restriction of WEB access based on: IP Address, And. MAC and Port;

Port Isolation

Loopback detection

Management SNMP v1/v2c/v3 with Full Private MIBs

RMON 4 groups

WEB (HTTP/HTTPS)

CLI (Telnet, Console, SSHv1/v2)

Firmware upgrade via console/web/TFTP

Configuration Backup/Reload

Dual firmware

LLDP

Synchronization,IEEE1588 Support IEEE1588v2 transparent clock
Other Features DNS Client

DHCP Relay

DHCP Client

DHCP Snooping

DHCP Option 82

NTP/SNTP Client

UPNP

UDLD

Maintenance Cable Diagnostics

Ping

SFP DDM(Digital Diagnostics Monitoring)

Thermal protection

System log (Local and Remote)

Memory and CPU Monitoring

Layer 3 functions

Static Routing IPv4 Unicast: Static Routing(Software Base)

IPv6 Unicast: Static Routing(Software Base)

IPV6 IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

Ping6

Telnet(v6)

Http/Https

Interface IPV6

ACL IPV6
