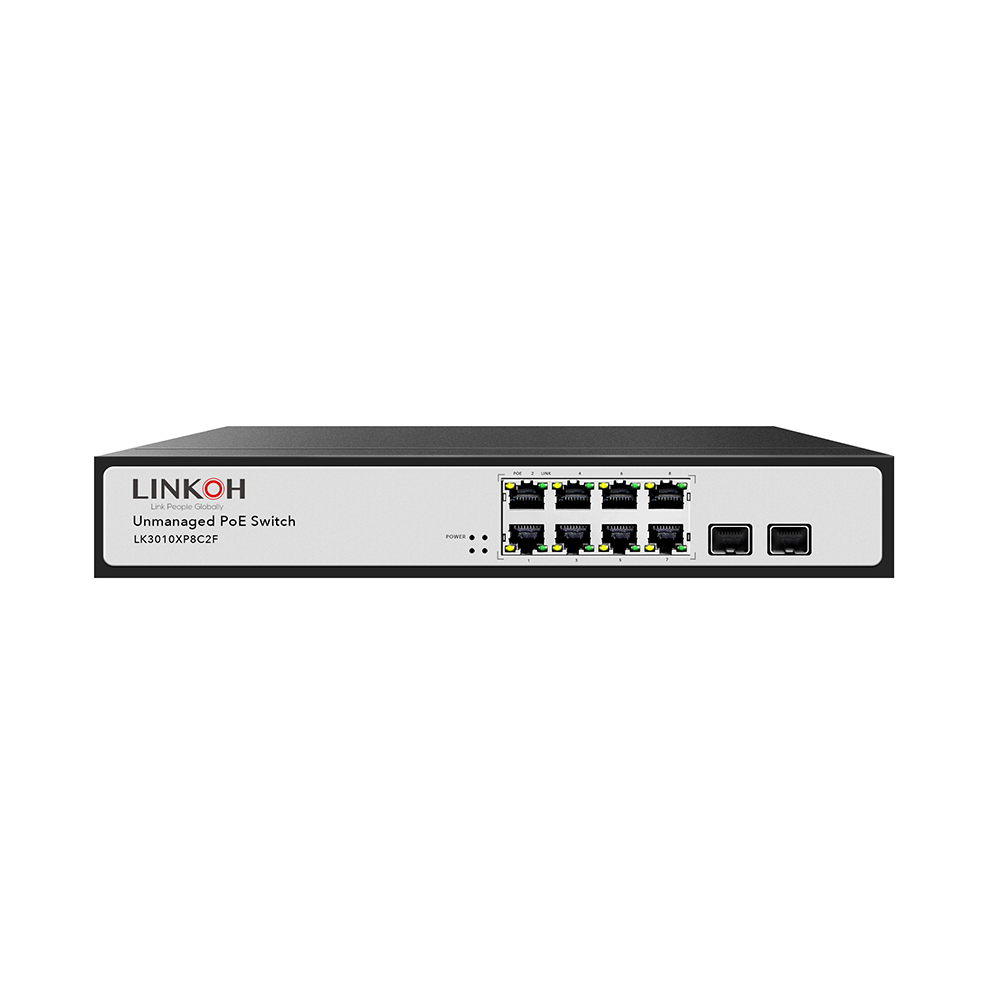

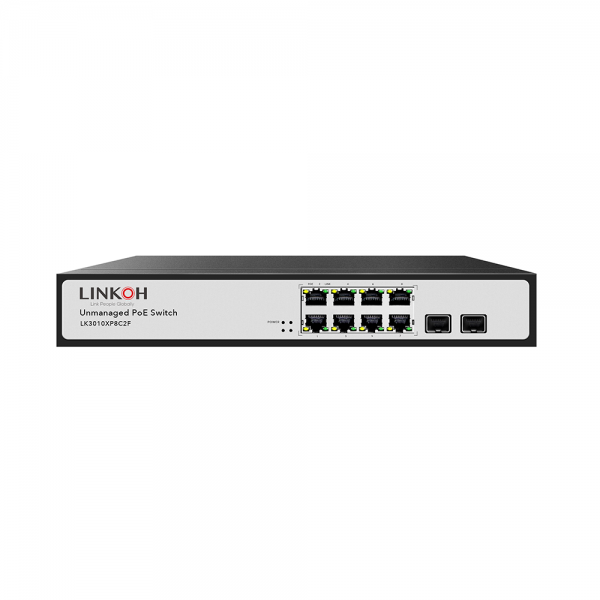

LINKOH 10/100/1000M Unmanaged PoE Switch 8 Ports with 2*10G SFP+

LINKOH, 10G uplink unmanged PoE Switch with 8-10/100/1000TX 802.3at PoE+ 2*10G SFP uplink slot ports. Build -in 150W

10G Uplink fiber unmanaged PoE 8port features 8port*gigabit IEEE802.3 af/at PoE and 2*10G SFP+ uplink slot ports. Fanless with 150W power supply.

  • Ideal PoE Solution for PoE IP Surveillance
  • Support Green Ethernet for engery saving
  • Support port sleep to avoid power waste
  • Easy Cable Connection



Data Sheet Download

Contact Us
SKU: LK3010XP8C2F Category:

LINKOH LK2010XP8C2F is an unmanaged PoE switch, equiped with 8*10/100/1000M PoE ports and 2*1000M SFP ports. With internal power supply 150W, the switch can feed up powered devices, such as IP camera, wireless AP, IP hone etc up to 30W per port. It is a cost-effective PoE solution for small business and enterprise projects

Ideal PoE Solution for PoE IP Surveillance

The LK3000 series brings you an ideally secure surveillance system at a lower total cost. The product provides 802.3at PoE+ ports able to feed sufficient PoE power to IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with  NVRs, uplinked to backbone switch and the monitoring center. With such a high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sites.





10Gbps Uplink Capacity for Big Bandwidth Application
10G Ethernet is a big leap in the evolution of Ethernet. The 10G SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. It is a cost-effective solution for SMB network to achieve the maximum performance of the 10G networks

Easy Cable Connection
With data switching and Power over Ethernet integrated into one unit, the LK3000 series reduces cabling requirements and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.

Specifications

Model LK3010XP8C2F
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Fiber Ports 2-10G BASE-X SFP+ interfaces
PoE Ports 8-802.3af/802.3at PoE Injector Ports
Switch Architecture Store-and-Forward
Switch Fabric 56Gbps/non-blocking
Throughput 41.66Mpps @64 bytes
Address Table 16K entries
Share Data Buffer 2Mb
Jumbo Frame 9600 Bytes
Flow Control IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
PoE Standard  IEEE 802.3. AF/AT, end-span
Power Supply Internal power supply 100~240V 50-60Hz 1A 150W
LED Indicators Power: Green

Solid on- power work normal, off- power disconnected

Speed Indicator: Yellow

10/100M: LED off, 1000M: solid on

LNK/ACT (Green),

Blink- port connected with data transmission; Solid on- port connected without data transmission

10G SFP Interfaces (Port 9to Port 10): Green

Blink- port connected with data transmission; Solid on- port connected without data transmission

EMC Surge: IEC 61000-4-5 Level 3

EFT:IEC 61000-4-4 Level 3

ESD:IEC 61000-4-2 Level 3

Certification CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS
Dimension 280x213x45mm
Weight 1.1kg
Working Temperature -10 ℃to 50℃
Storage Temperature  -20℃ to 70 ℃
MTBF 50,000hrs
