LINKOH Industrial Ethernet Switch Gigabit with 2*10/100/1000M Port and 1*1000M SFP

LINKOH Industrial Ethernet Switch Gigabit with 2*10/100/1000M Port and 1*1000M SFP

  • Support 250M working mode
  • Support VLAN working mode
  • Wide voltage input: 12V-57V
  • Redundant power design,support power hot backup;
  • Support -40℃ to +75℃ working temperature;
  • Support 4KV surge protection,8KV/15KV ESD protection;
Contact Us

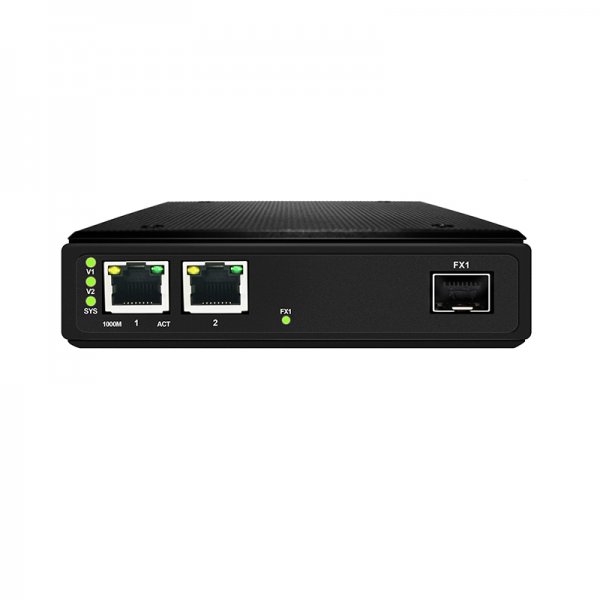

LINKOH LK9003P2C1F Industrial Switch is an unmanaged Gigabit Ethernet Switch that features 2-Ports Gigabit RJ45 + 1-Port Gigabit fiber optical port,which is equipped with an IP40-rated rugged but compact-size case for stable operation in heavy industrial demanding environments. Being able to operate under the temperature ranging from -40℃ to +75℃. It provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.



SFP Design for Flexible Distance Extension

The additional mini-GBIC slots supports SFP auto-detection , meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Environmentally-hardened Design

With the IP40 aluminum industrial case, the industrial gigabit switch provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction without fan, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, can be placed in almost any difficult environment.



ESD Protection

The industrial unmanaged switch series provides ±4KV contact/ ±8KV air ESD protection. It also supports ±15KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Application

FTTX Solutions for MAN Application

To build a network solution of FTTX, including FTTH, FTTC and FTTB, the various distances of SFP transceivers are optional for customers. With two Gigabit-speed SFP, the deployment distance of the switch can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions. The LK9004P2C2F is the ideal solution for service providers such as ISPs and telecoms to build Metropolitan Area Network (MAN) based on the fiber technology.



Network Extension Deployment Solution

With its additional 1-port 1000BASE-SX/LX SFP fiber optic Ethernet link capability, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Specification

Model LK89003P2C1F
Copper Ports 2-10/100/1000BASE-T RJ45 auto-sensing ports
Fiber Ports 1-100/1000BASE-X uplink fiber  ports, SC/ST/FC/SFP optional
Switch Architecture Store-and-Forward
DIP Switch Extend (250M)
VLAN
N/A
Switch Fabric 6Gbps/non-blocking
Throughput 4.46Mpps @64 bytes
Share Data Buffer 2 Mb
Jumbo Frame 9216 Bytes
Flow Control IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
Power Supply 12 ~ 57 VDC, 50/60Hz,Dual DC
LED Indicators Power: Green

Solid on- power work normal, off- power disconnected

System: Green

Blink-work normally, solid on- soft work abnormal

10/100/1000T RJ45 Interfaces (Port 1-2): 1000 LNK/ACT (Green),

10/100 LNK/ACT (yellow)

Blink- port connected with data transmission; Solid on- port connected

without data transmission

100/1000Mbps SFP Interfaces (Port 3): Green

Blink- port connected with data transmission; Solid on- port connected

without data transmission

EMC Surge Immunity:4KV   Per: IEC61000-4-5

ESD Protection: ESD Level 4 Per: IEC61000-4-2;

EFT Level 4 Per: IEC61000-4-4

Dimension 118.5*100*30mm
Weight 0.3kg
Working Temperature -40°C to 75°C
Storage Temperature ‘-40℃ to 80 ℃
MTBF 50,000hrs
