Lite Management Gigabit PoE Switch 4-Port 10/100/1000M RJ45 + 1-Port 10/100/1000M Rj45 Uplink+1-Port 1000M SFP

LINKOH gigabit lite management PoE ethernet switch series are designed for smart surveillance and SMB. This 4-port smart PoE+ switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for flow control, DHCP, VLAN and QoS. LINKOH’s LK3006P5C1FM provides four gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.

  • Support PoE management: PoE enable/disable, PoE reboot
  • Support Extend (250M) PoE configuration
  • Support VLAN, QoS, MAC ect management functions
  • Support customization to private cloud
  • 4KV surge protection, 6KV contact/8KV air ESD protection
  • Wide working temperature: -10℃ to +55℃
Contact Us

LK3006P5C1FM integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network.

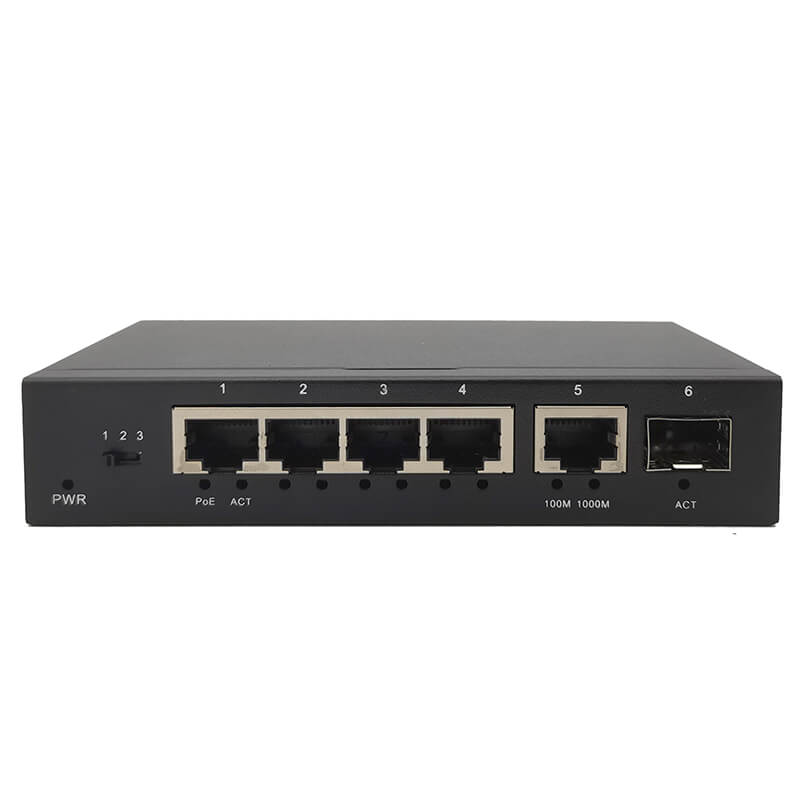

LK3006P5C1FM is a lite management PoE switch with 4*10/100/1000M PoE RJ45, 1*10/100/1000M Uplink Rj45 and 1*1000M SFP port. It is compatible with standard. It supports Extend PoE . It is a ideal PoE solution for home, SOHO and SMB projects.


Auto PoE power adjustment for safety and energy saving

The PoE port of the lite management switches support 802.3af and 802.3at, providing up to 30W power supply to the connected device. The switches will negotiate with the connected devices to automatically adjust the PoE power, thereby saving energy. In addition, when the PoE port is connected to a PC, DVR, or other non-PoE device, the switch will automatically identify the device and will not output power to such device to ensure equipment safety.


PoE and Data Transmission up to 250M

The 4 ports lite management PoE switch can configure Extend PoE mode of each port on the web interface. In the “Extend PoE” operation mode, operates on a per-port basis at 10Mbps full duplex operation and can support 8~15-watt PoE power output over a distance of up to 250 meters, overcoming the 100-meter limit on Ethernet UTP cable.

VLAN for Broadcast Storm Control

The lite management PoE switch provides convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of equipment connected to the port, so that the surveillance network and data network do not interfere with each other, improving the stability of the entire network. This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other, thus fully meeting the requirements of the IP surveillance systems and Ethernet projects.


Model Specifications LK3006P5C1FM
Switching capacity 12Gbps
Data Buffer 1Mbit
Thoughput 8.93Mpps
Ports 4 10/100/1000 Base-T ports (PoE/PoE+)
1 10/100/1000 Base-T uplink port
1 1000 Base-X SFP port
PoE Standard IEEE 802.3at /
PoE Power Budget 60W
Speed / Duplex mode Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address 2K
Maximum Number of VLANs 16
Allowed VLAN ID 1 ~ 4094
Port-based VLAN Support
MAC Constraint Support
QoS Priority selection, Priority to queue, Port-based Priority, Queue Weight
Trunk Group Support
Flow Control Support
Loop Protection Support
Unknown Unicast Suppression Support
Multicast / Broadcast
Storm Suppression
Mirroring Many-to-One Mirroring
Port Isolation Support
Cable  Diagnostic Support
ICMP Ping Support
PoE Management PoE enable/disable, PoE Reboot
Extend PoE Enable/Disable 250M PoE on each port
Port Surge Common mode: 4KV
Electrostatic Discharge Air discharge: 6KV Contact discharge: 4KV
Power Consumption < 65W
Power supply Extenal power supply
MTBF >50,000 hours
Operating temperature -10 to 55°C
Storage temperature -40~70°C
Operating humidity 10% to 90% RH
Storage humidity 5% to 95% RH
Operating Altitude -500 ~ 5000 meters
FAN Fanless
Management Support management and configuration through web management interface
Safety Standard Ground Resistance EN 62638-1
EMC EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
